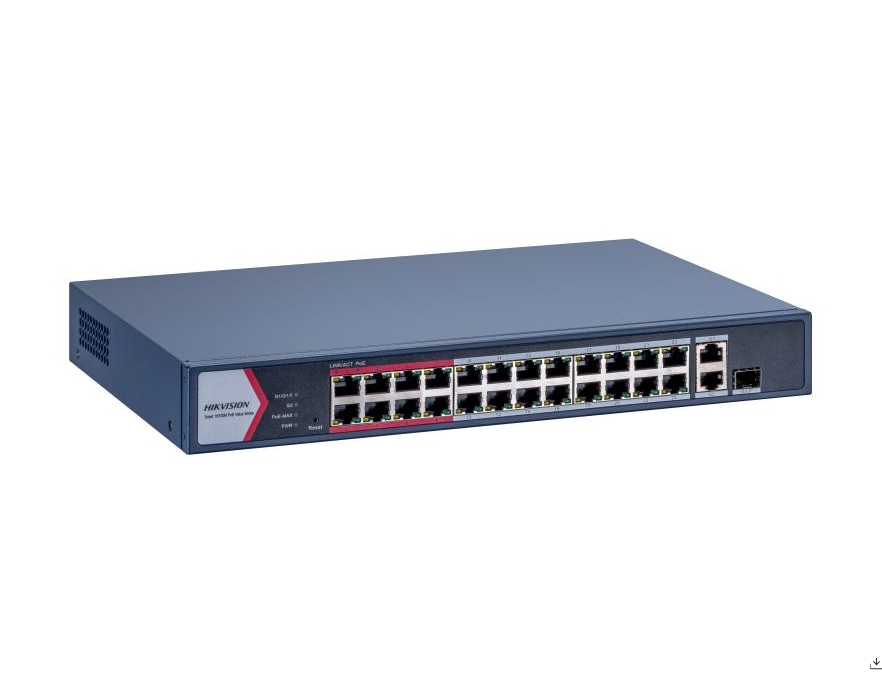

HikVision 24 Port Fast Ethernet Smart POE Switch, 24 x 10/100M PoE ports, 1 x Gigabit combo, 1 x...

HikVision 24 Port Fast Ethernet Smart POE Switch, 24 x... - 0

Спецификации

Суич, тип
Fixed Port
Общ брой портове
26
Основни портове, тип
24x10/100Base-TX
Power Over Ethernet (PoE)
IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 24; Max. Port Power: 30 W; PoE Power Budget: 230 W
Uplink портове
1 dual personality, 1x10/100/1000Base-T
Свободни (10GB) слотове
No
Управление
Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client; Port mirroring
Stackable
No
Fans
Fanless design
Захранване
100-240 V AC, 50/60 Hz, Max. 4 A; Max. Power Consumption: 250 W
Routing
Layer 2 Only
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
Whole-Device Performance: 14.8 Gbps, Port Performance: 8.8 Gbps
Пропускателна способност, Mpps
Whole-Device Performance: 11.01 Mpps, Port Performance: 6.55 Mpps
MAC адреси
16 000 MAC address table size
VLAN (брой, стандарти)
VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN
QoS
-
L2 мрежови стандарти
IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab
L3 мрежови стандарти
-
IPv6 functionality
-
Сигурност
6 kV Surge Protection, STP/RSTP loop prevention, cable detection to locate failure
Размери (Ш, Д, В), mm
440.00 x 44.00 x 220.80 mm
Опция за монтаж
Rackmount
Гаранция, м.
24 месеца
Тегло, кг.
3.1 кг.
