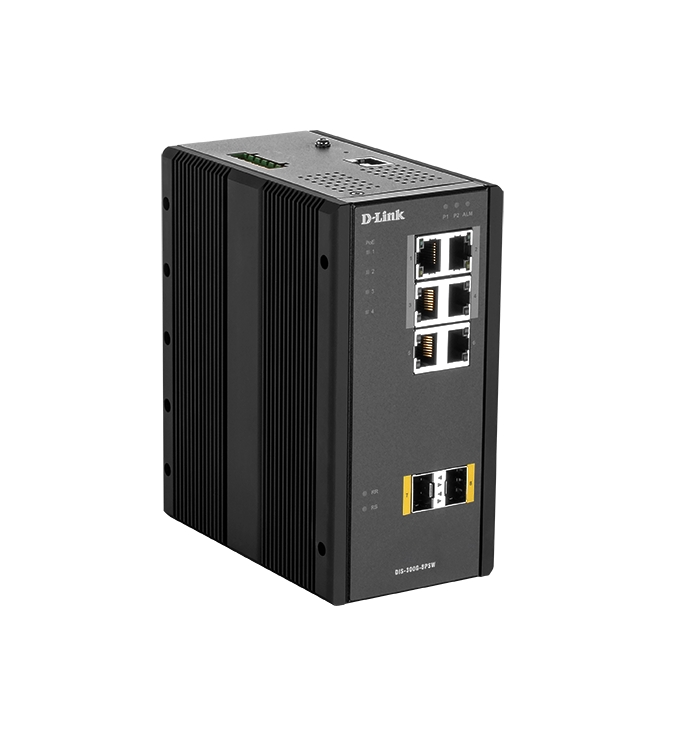

D-Link 8 Port L2 Managed Switch with 6 x 10/100/1000BaseT(X) ports (4 PoE) & 2 x 100/1000BaseSFP...

D-Link 8 Port L2 Managed Switch with 6 x... - 0

Спецификации

Суич, тип
Fixed Port
Общ брой портове
8
Основни портове, тип
4x10/100/1000Base-T
Power Over Ethernet (PoE)
Support IEEE 802.3af PoE and IEEE 802.3at PoE plus standard; PoE Power Budget: 120W
Uplink портове
2x10/100/1000Base-T, 2xSFP
Свободни (10GB) слотове
No
Управление
Industrial-like CLI (command line interface); WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); FTP for Configuration Import/Export and Firmware Upgrade; HTTPs, SSH, Radius Client for Management; NTP/SNTP; DHCP (Client, Server, Relay, Snooping)
Stackable
No
Fans
Fanless design
Захранване
Input Voltage Range: 48-58 VDC (54~58V VDC for IEEE802.3at PoE/PSE application); Compatible Power Supplies: DIS-N240-48, DIS-N480-48
Routing
Layer 2 Only
Памет (Flash, RAM)
-
MAC адреси
8000 MAC address table size
VLAN (брой, стандарти)
Port-based VLANs; MAC-based VLANs; IP Subnet-based VLANs; Protocol-based VLANs; IEEE 802.1Q tag-based VLANs; RADIUS-assigned VLAN; IEEE 802.1ad Double Tagging (Q in Q); 1024 Max VLANs
QoS
IEEE 802.1p QoS, 8 queues per port; Scheduling Schemes - SPQ, WRR; Port-based shaping; RADIUS-assigned QoS Class
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1X, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1p
L3 мрежови стандарти
-
IPv6 functionality
-
Сигурност
IP and MAC-based access control; IEEE 802.1X authentication; Network Access Control; Authentication via local database, RADIUS or TACACS+ AAA (Authentication, Accounting and Authorization); Multicast/Broadcast/Flooding Storm Control
Размери (Ш, Д, В), mm
77 x 154 x 128
Гаранция, м.
60 месеца
Тегло, кг.
2 кг.
