Спецификации

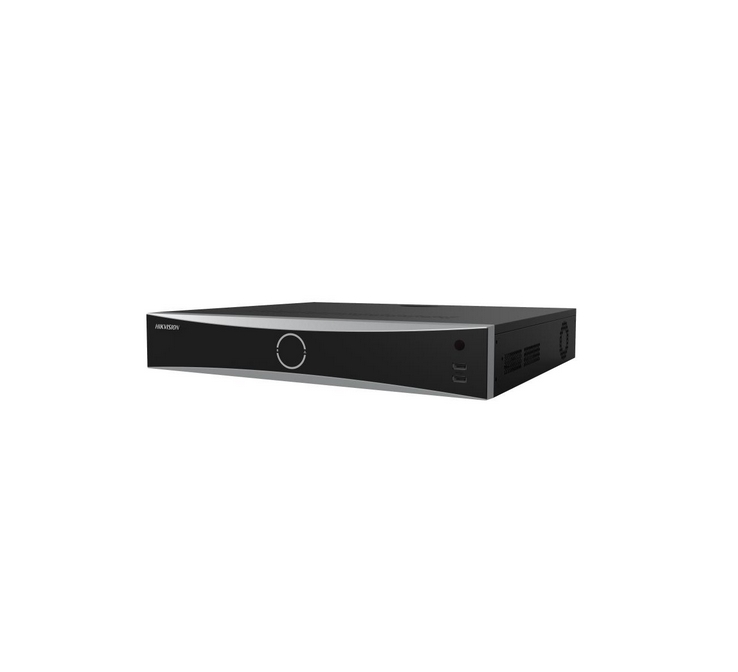

- ТипIP Recorder
- Брой канали32 (IP Video Input)
- Power Over Ethernet (PoE)16 PoE interface, Power: <= 200 W, IEEE 802.3af/at standard
- Гаранция, м.24 месеца
- Тегло, кг.5.8 кг.
- Видео компресияH.265/H.265+/H.264+/H.264
- Аудио компресияG.711ulaw/G.711alaw/G.722/G.726/AAC
- HDMI1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
- VGA1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- Видео изходен режимHDMI/VGA independent output
- КапацитетIncoming: 256 Mbps, Outgoing: 160 Mbps
- Резолюция на запис12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Дистанционна връзка128
- Мрежови протоколиTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
- Мрежов интерфейс1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Спомагателен интерфейс4 SATA interfaces (Capacity: Up to 10 TB capacity for each HDD); Front panel: 2x USB 2.0; Rear panel: 1x USB 3.0; Serial Interface: 2 RS-485 (half-duplex), 1 RS-232; Alarm In/Out: 16/4 (16/9 is optional)
- Захранване100 to 240 VAC, 50 to 60 Hz; Consumption: <= 20 W (without HDD, and PoE off)
- Размери (Ш, Д, В), mm445 x 400 x 75 mm
- Тегло, g<= 5 kg
- Аудио1-ch, RCA (2.0 Vp-p, 1 kOhm, using the audio input); Audio Output: 1-ch, RCA (Linear, 1 kOhm)
