Спецификации

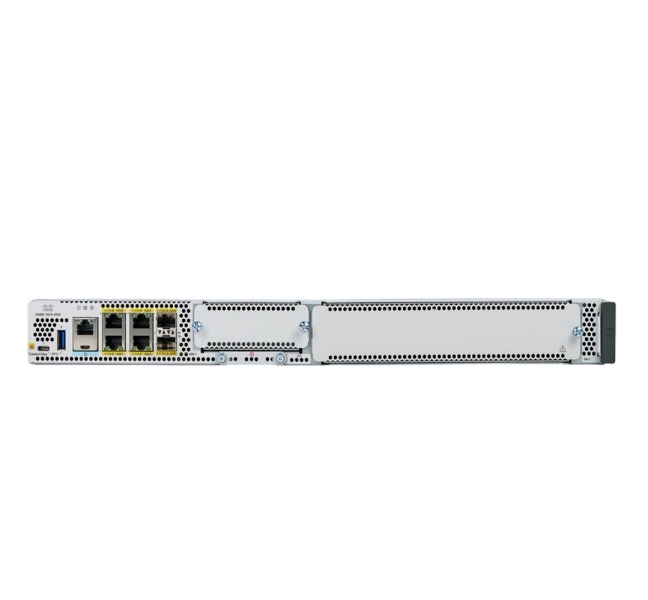

- СерияCatalyst C8300
- Интегрирани WAN портове2x 10-Gigabit Ethernet and 4x 1-Gigabit Ethernet ports (2x Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) + 4x RJ-45 connections, enabling fiber or copper connectivity)
- Модулни LAN портовеSupported modules: NIM-ES2-4/8 - Cisco 4/8-port Gigabit Ethernet switch NIM; NIM-ES2-8-P - Cisco 8-port Gigabit Ethernet switch NIM with PoE support; C-SM-16P4M2X/40P8M2X - Cisco 22/50-port Catalyst L2 switch module with UADP ASIC
- SFP базирани портове2x SFP/SFP+
- Брой EHWIC слотове1x NIM
- Модул интегрирани услуги1x PIM
- Мрежови слот NM/SM1x SM
- IPSec VPN тунели4000 - Number of IPsec SVTI Tunnels
- СигурностBuilt-in end-to-end segmentation (VPNs), ZBFW, PKI, Cisco DNA Layer Security, Snort IPS/IDS, URL Filtering, Advanced Protection(AMP), ThreatGrid(TG), ALG for ZBFW
- ГласSupports a variety of voice modules
- Памет DRAM вградена/ max8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance
- Памет Flash вградена/ mахIntegrated on-board 8G flash and it is not upgradeable. M.2 storage provides upgrade options for additional storage
- USB портове0
- Размери (Ш, Д, В), mm444.5 x 412.75 x 43.9 mm
- Допълнителна информацияAll the Catalyst 8300 models ship with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe).
- Гаранция, м.12 месеца
- Тегло, кг.10.7 кг.
- ДругиUp to 5 Gbps of IPSec Internet Mix (IMIX) traffic. All Catalyst 8300 platforms ship with dual power supplies for redundancy
