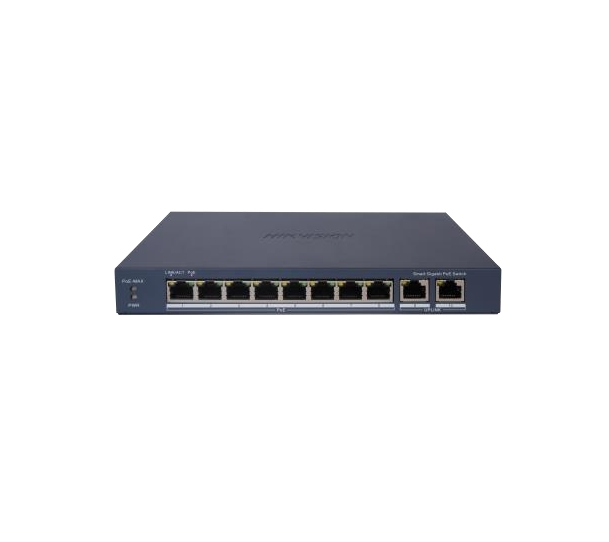

HikVision 8 Port Gigabit Smart PoE Switch, 8 x Gigabit PoE port, 2 x Gigabit RJ45 port, Total PoE...

HikVision 8 Port Gigabit Smart PoE Switch, 8 x Gigabit... - 0

Спецификации

Суич, тип
Fixed Port
Общ брой портове
10
Основни портове, тип
8x10/100/1000Base-T
Power Over Ethernet (PoE)
IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 8; Max. Port Power: 30 W; PoE Power Budget: 110 W
Uplink портове
2x10/100/1000Base-T
Свободни (10GB) слотове
No
Управление
Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client; SNMP v1/v2c for third-party management platform access; Port mirroring
Stackable
No
Fans
Fanless design
Захранване
54 V DC, 2.22 A; Max. Power Consumption: 120 W
Routing
Layer 2 Only
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
20 Gbps
Пропускателна способност, Mpps
14.88 Mpps
MAC адреси
4000 MAC address table size
VLAN (брой, стандарти)
VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 32 VLAN
QoS
-
L2 мрежови стандарти
IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab
L3 мрежови стандарти
-
IPv6 functionality
-
Сигурност
6 kV Surge Protection, STP/RSTP loop prevention, cable detection to locate failure
Размери (Ш, Д, В), mm
217.6 x 27.6 x 108.5 mm
Опция за монтаж
Desktop/Wall mount
Гаранция, м.
24 месеца
Тегло, кг.
1.27 кг.
