Мрежови устройства
Комутатори

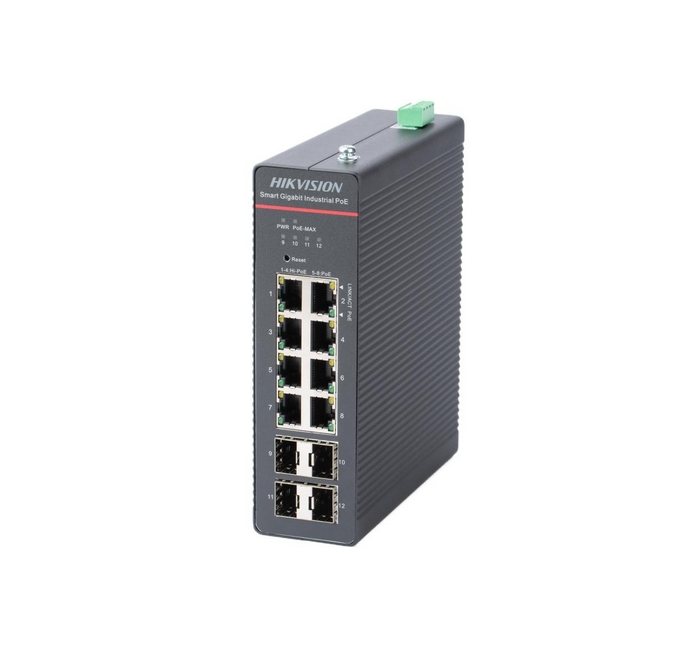

HikVision 8 Port Gigabit Smart Managed Industrial POE Switch, 8 x Gigabit PoE RJ45 ports, 4 x...

HikVision 8 Port Gigabit Smart Managed Industrial POE... - 0

Спецификации

Суич, тип
Fixed Port
Общ брой портове
12
Основни портове, тип
8x10/100/1000Base-T
Power Over Ethernet (PoE)
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Standard; Hi-PoE: Ports 1 to 4, PoE: Ports 5 to 8; Max. Port Power: Ports 1 to 4 (90 W), Ports 5 to 8 (30 W); PoE Power Budget: 300 W
Uplink портове
4xSFP
Свободни (10GB) слотове
No
Управление
Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client; SNMP v1/v2c for third-party management platform access; Port mirroring
Stackable
No
Fans
Fanless design
Захранване
48~57 V DC, 7.5 A; 52 V~57 V recommended input voltage to ensure stable power supply; Support dual power inputs and hot backup; Max. Power Consumption: 307 W
Routing
Layer 2 Only
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
Whole-Device Performance: 56 Gbps, Port Performance: 24 Gbps
Пропускателна способност, Mpps
Whole-Device Performance: 41.66 Mpps, Port Performance: 17.86 Mpps
MAC адреси
8000 MAC address table size
VLAN (брой, стандарти)
VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN
QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration, Support SP and WRR priority scheduling modes
L2 мрежови стандарти
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab
L3 мрежови стандарти
-
IPv6 functionality
-
Сигурност
6 kV Surge Protection, STP/RSTP/ERPS loop prevention and storm control, cable detection to locate failure, DHCP snooping, ACL, IPSG
Размери (Ш, Д, В), mm
155.00 x 46.00 x 130.00 mm
Опция за монтаж
Desk-Mounted, Rail
Гаранция, м.
24 месеца
Тегло, кг.
1.16 кг.
