Мрежови устройства
Комутатори

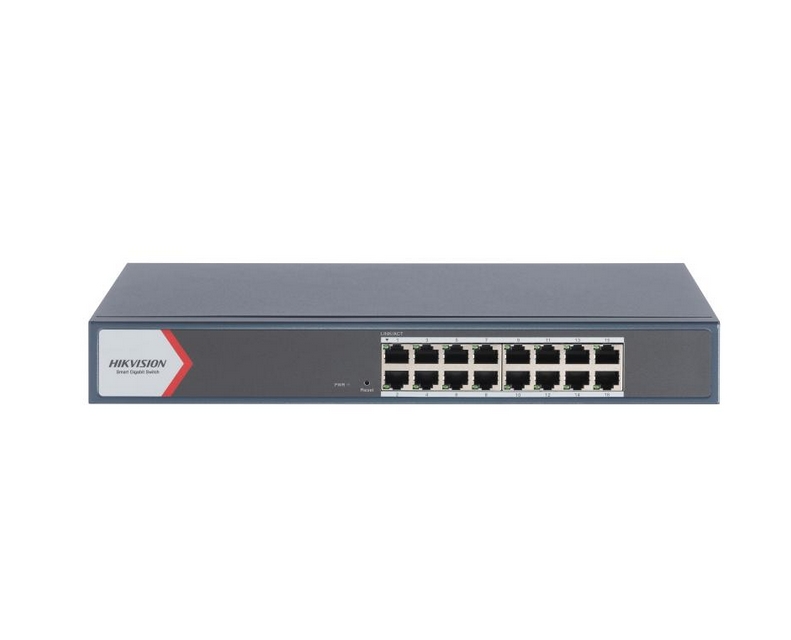

HikVision 16 Port Gigabit Smart Switch, 16 x Gigabit RJ45 port, Link aggregation, switching...

HikVision 16 Port Gigabit Smart Switch, 16 x Gigabit RJ45... - 0

Спецификации

Суич, тип
Fixed Port
Общ брой портове
16
Основни портове, тип
16x10/100/1000Base-T
Power Over Ethernet (PoE)
No
Uplink портове
0
Свободни (10GB) слотове
No
Управление
Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client; Port mirroring
Stackable
No
Fans
Fanless design
Захранване
220 V AC, 50/60 Hz, Max. 0.3 A; Max. Power Consumption: 12 W
Routing
Layer 2 Only
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
56 Gbps
Пропускателна способност, Mpps
41.66 Mpps
MAC адреси
8000 MAC address table size
VLAN (брой, стандарти)
VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 32 VLAN
QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration, Support SP and WRR priority scheduling modes
L2 мрежови стандарти
IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab, IEEE 802.3az
L3 мрежови стандарти
-
IPv6 functionality
-
Сигурност
6 kV Surge Protection, STP/RSTP loop prevention, cable detection to locate failure, DHCP snooping
Размери (Ш, Д, В), mm
335.00 x 44.50 x 175.80 mm
Опция за монтаж
Rackmount
Гаранция, м.
24 месеца
Тегло, кг.
1.96 кг.
