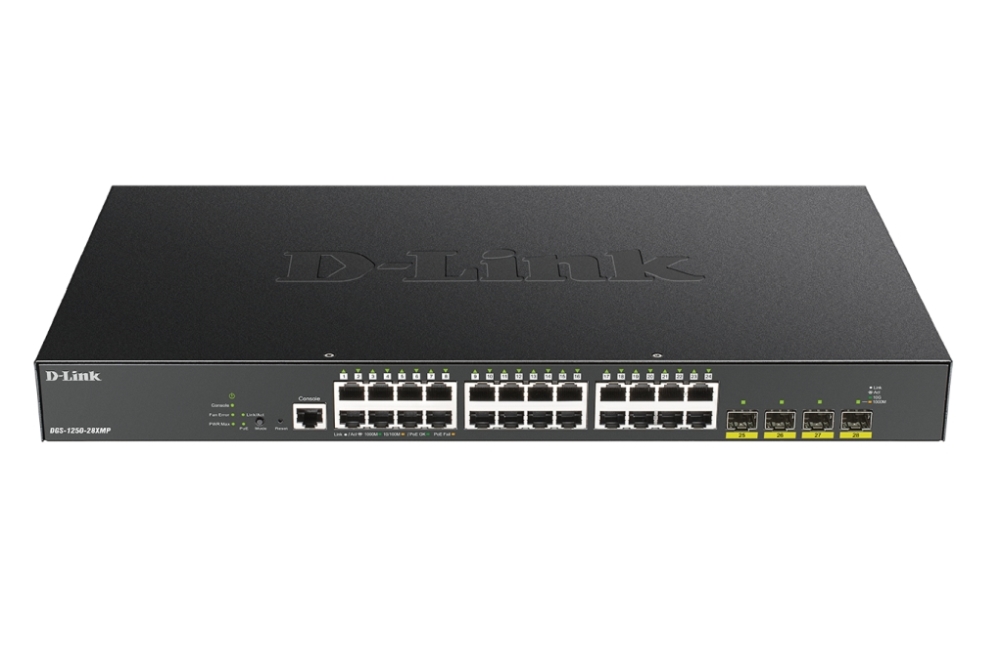

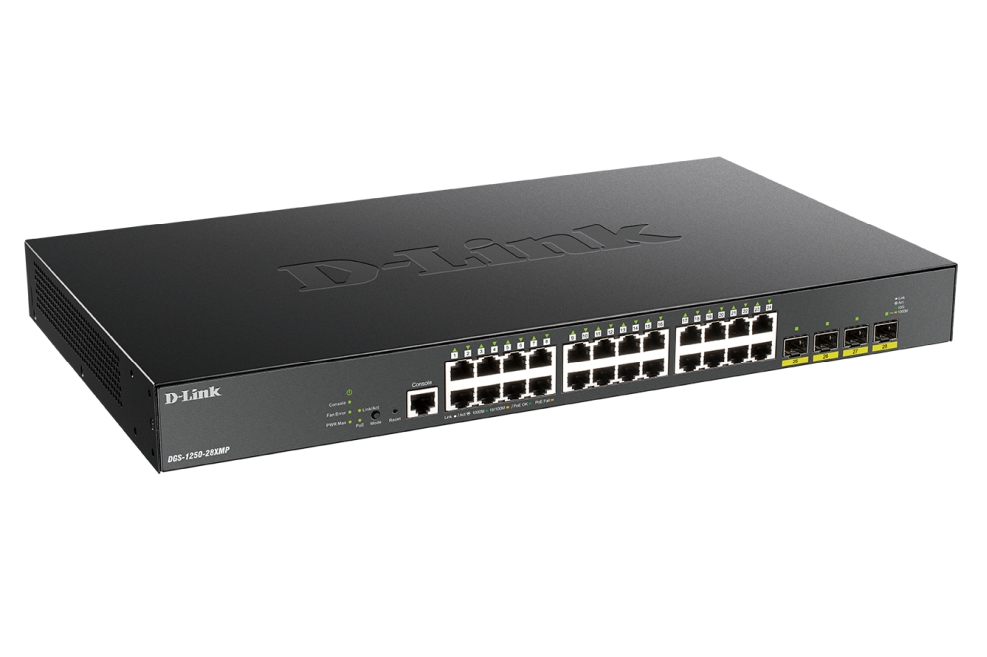

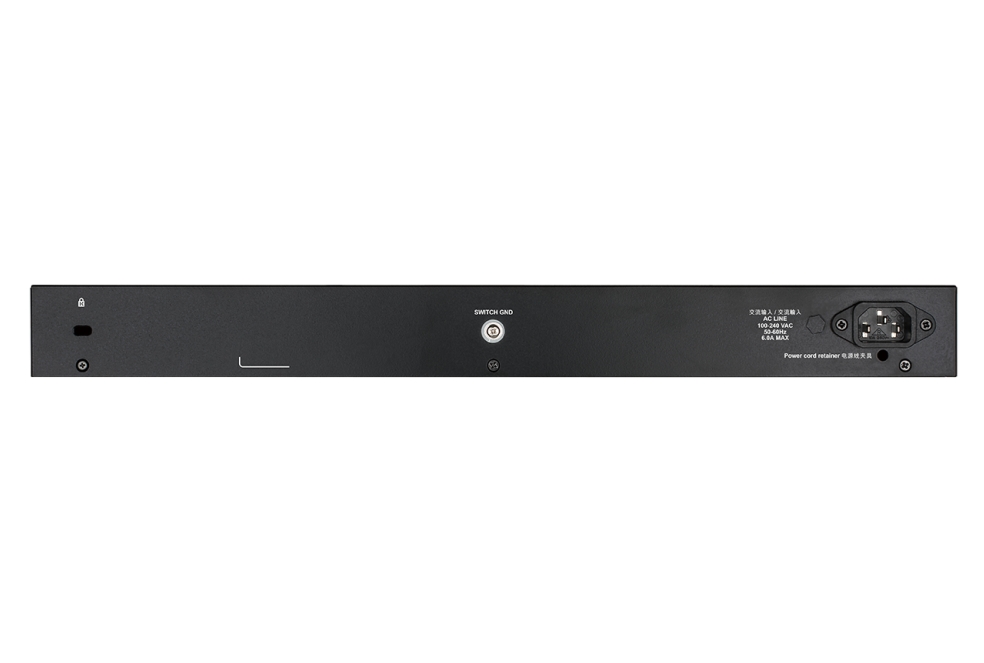

D-Link 24-port Gigabit PoE Smart Managed Switch with 4x 10G SFP+ ports, 370Watts

D-Link 24-port Gigabit PoE Smart Managed Switch with 4x... - 0

D-Link 24-port Gigabit PoE Smart Managed Switch with 4x... - 1

D-Link 24-port Gigabit PoE Smart Managed Switch with 4x... - 2

Спецификации

Суич, тип
Fixed Port
Общ брой портове
28
Основни портове, тип
24x10/100/1000Base-T
Power Over Ethernet (PoE)
IEEE 802.3af/at PoE Standard; 24 PoE Capable Ports; PoE Power Budget: 370 W
Uplink портове
4x10GE SFP
Свободни (10GB) слотове
No
Управление
Web-based GUI, D-Link Network Assistant, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP (Supports v1/v2c/v3), SNMP Trap, BootP/DHCP Client, System Log, ICMP v6, IPv4/v6 Dual Stack, DHCP Auto Configuration, RMONv1
Stackable
No
Fans
Fanless
Захранване
Internal universal power supply: 100 to 240 V AC 50/60 Hz, Maximum Power Consumption: 431.5 W (PoE On), 39.1 W (PoE Off)
Routing
Layer 3 Lite
Памет (Flash, RAM)
Flash Memory: 64 MB, CPU memory: 2G DDR3
Капацитет за маршрутизиране/превключване, Gbps
128 Gbps
Пропускателна способност, Mpps
95.24 Mpps
MAC адреси
16000 MAC address table size
VLAN (брой, стандарти)
802.1Q; VLAN Group - Max. 4094 static VLAN groups; Configurable VID from 1 - 4094; Asymmetric VLAN; Auto Voice VLAN: Max. 10 user-defined OUI, Max. 8 default OUI; Auto Surveillance VLAN
QoS
802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR); Bandwidth Control - Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at
L3 мрежови стандарти
Static routing: 124 IPv4 static route entries, 50 IPv6 static route entries
IPv6 functionality
IPv6 Neighbor Discovery (ND); IPv6 address: Source/destination IP address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask, IPv6 traffic class mask; IPv6 Inspection (Max. 63 entries); IPv6 RADIUS server
Сигурност
Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, Traffic segmentation, SSH v2, TLS v.1.2, DoS attack prevention, 802.1X, Port Security - Supports up to 64 MAC addresses per port, ARP Spoofing Prevention, DHCP, IP-MAC-Port Binding
Размери (Ш, Д, В), mm
440 x 250 x 44 mm
Опция за монтаж
Rackmount
Други
RJ-45 console Port for CLI management
Гаранция, м.
99 месеца
Тегло, кг.
4.3 кг.
