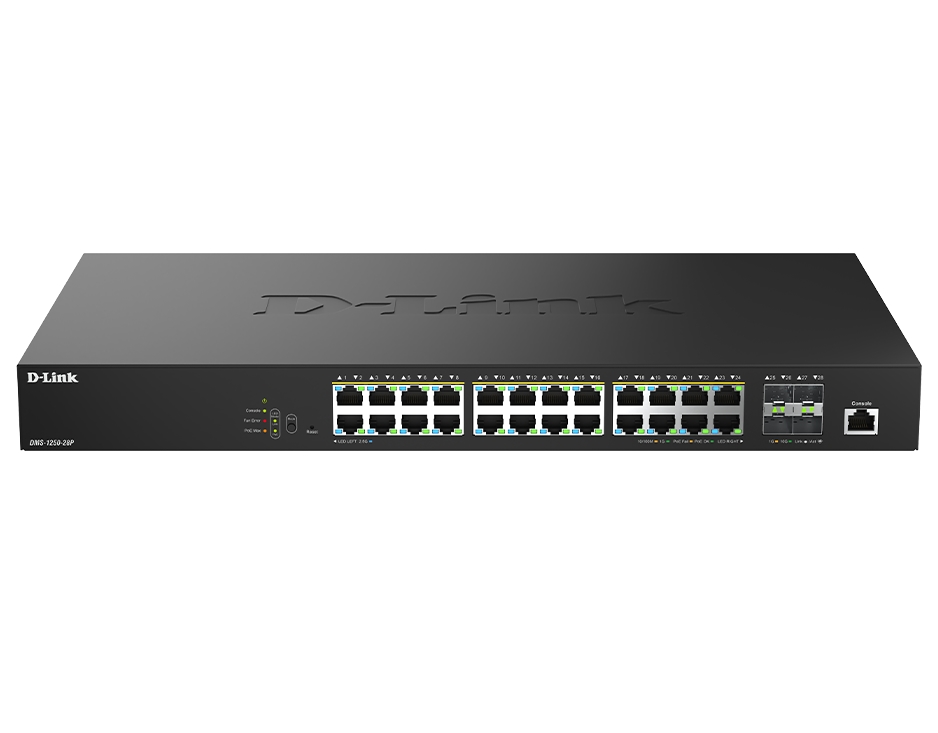

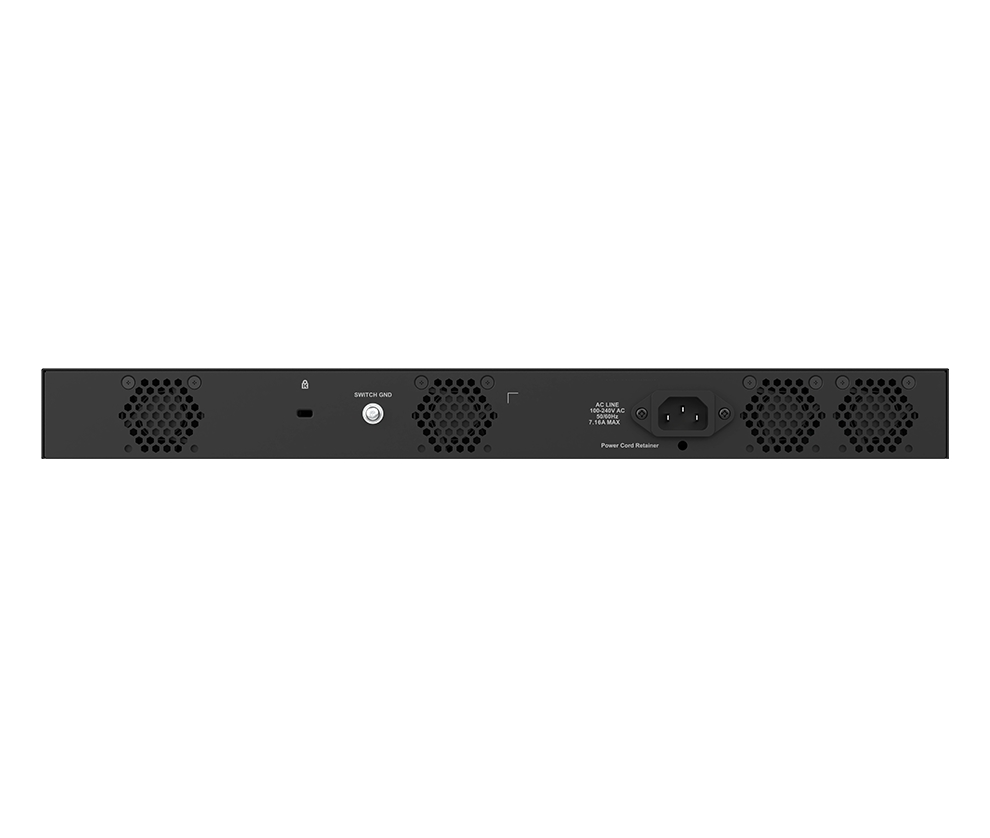

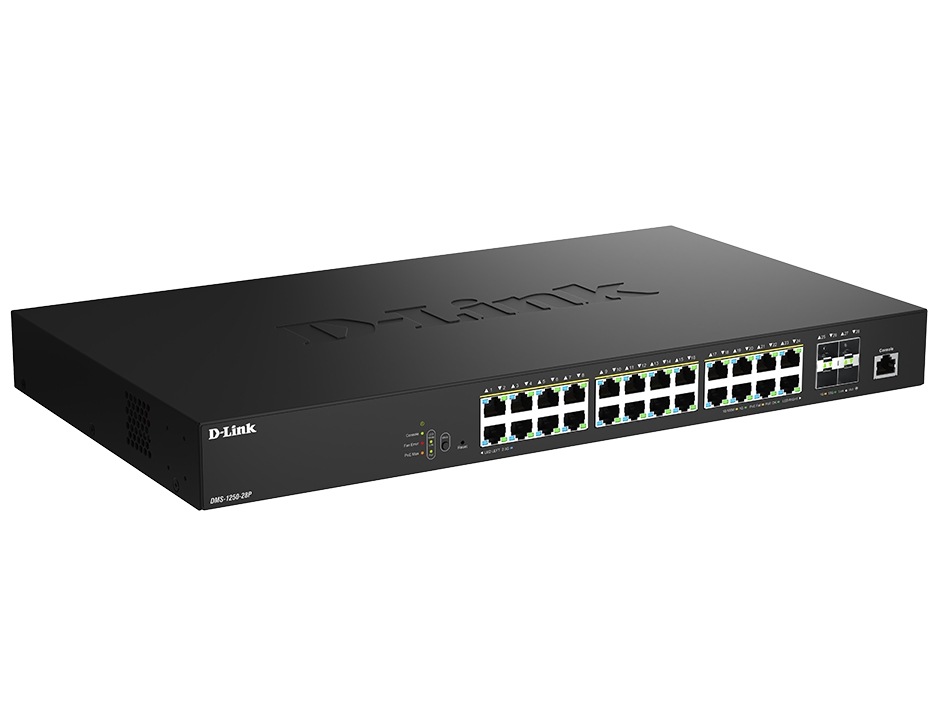

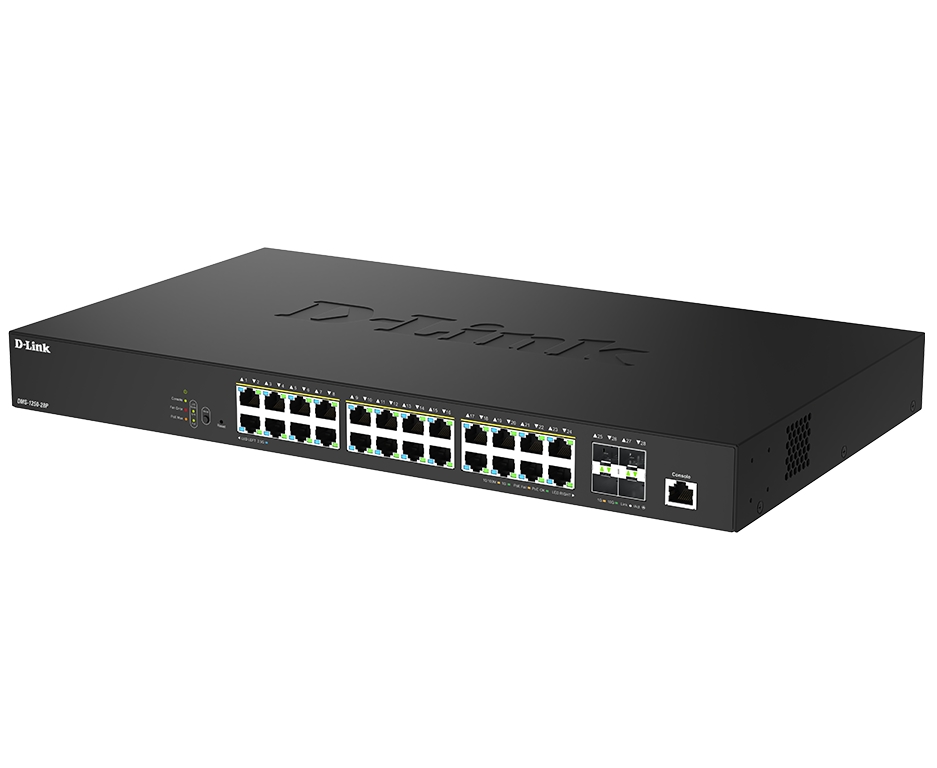

D-Link 24 Ports 2.5Gbps PoE(90W)+ 4 Ports 10G SFP+ Smart Managed Switch

D-Link 24 Ports 2.5Gbps PoE(90W)+ 4 Ports 10G SFP+ Smart... - 0

D-Link 24 Ports 2.5Gbps PoE(90W)+ 4 Ports 10G SFP+ Smart... - 1

D-Link 24 Ports 2.5Gbps PoE(90W)+ 4 Ports 10G SFP+ Smart... - 2

D-Link 24 Ports 2.5Gbps PoE(90W)+ 4 Ports 10G SFP+ Smart... - 3

Спецификации

Суич, тип
Fixed Port
Общ брой портове
28
Основни портове, тип
24x10/100/1000/2500Base-T
Power Over Ethernet (PoE)
PoE Standard: IEEE 802.3af/at/bt (90W), PoE Capable Ports: IEEE 802.3bt 24 ports, PoE Power Budget: 475 W
Uplink портове
4x10GE SFP
Свободни (10GB) слотове
No
Управление
Web-based GUI, Full CLI, Telnet Server, TFTP Client, Auto MDI/MDIX, SNMP (Supports v1/v2c/v3), SNMP Trap, Backup/upgrade firmware, Smart Wizard, Upload/download configuration file, BootP/DHCP Client, System Log, RMONv1, Trusted host, Command logging
Stackable
No
Fans
4 internal fans
Захранване
Internal universal power supply: 100 to 240 V AC 50/60 Hz, Maximum Power Consumption: 592.19W (PoE on)
Routing
Layer 3 Lite
Памет (Flash, RAM)
Flash Memory: 32 MB, DRAM: 512 MB
Капацитет за маршрутизиране/превключване, Gbps
200 Gbps
Пропускателна способност, Mpps
148.81 Mpps
MAC адреси
32000 MAC address table size
VLAN (брой, стандарти)
802.1Q; VLAN Group - Max. 4094 static VLAN groups; Configurable VID from 1 - 4094; Asymmetric VLAN; Auto Voice VLAN; Auto Surveillance VLAN; GVRP; ISM VLAN; VLAN Translation; Double VLAN (Q-in-Q) - Port-based Q-in-Q, Selective Q-in-Q
QoS
802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, WFQ, Weighted Round Robin (WRR); Bandwidth Control - Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
L2 мрежови стандарти
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
L3 мрежови стандарти
Static route: 128 IPv4 static route entries, 64 IPv6 static route entries
IPv6 functionality
IPv6 Neighbor Discovery (ND); IPv6 address: Source/destination IP address prefix length, DSCP, Protocol type, TCP/UDP port number, IPv6 traffic class
Сигурност
Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, Traffic segmentation, TLS v.1.2, DoS attack prevention, 802.1X, Port Security - Supports up to 64 MAC addresses per port, DHCP, IP-MAC-Port Binding, Password encryption
Размери (Ш, Д, В), mm
440 x 250 x 44 mm
Опция за монтаж
Desktop
Гаранция, м.
99 месеца
Тегло, кг.
4.5 кг.
