Спецификации

Операционна система
Microsoft Windows 10 64-bit / 11 64-bit
Специални функции
Superb Productivity, Rock-Solid Durability, Ultrafast Connectivity, EZ Update, EZ Troubleshooter
Гаранция, м.
36 месеца
Тегло, кг.
0.88 кг.
Серия
B760M Pro
Процесор
Intel 1700
Чипсет
Intel B760
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Аудио
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
Безжична мрежа
-
Конектори
24 pin ATX Power Connector, 8 pin 12V Power Connector, Front Panel Audio Connector, Thunderbolt AIC Connector (5-pin)
Слотове
CPU: PCIe 5.0 x16 Slot (PCIE1), supports x 16 mode; Chipset: PCIe 3.0 x16 Slot (PCIE2), supports x 4 mode
Интерфейс

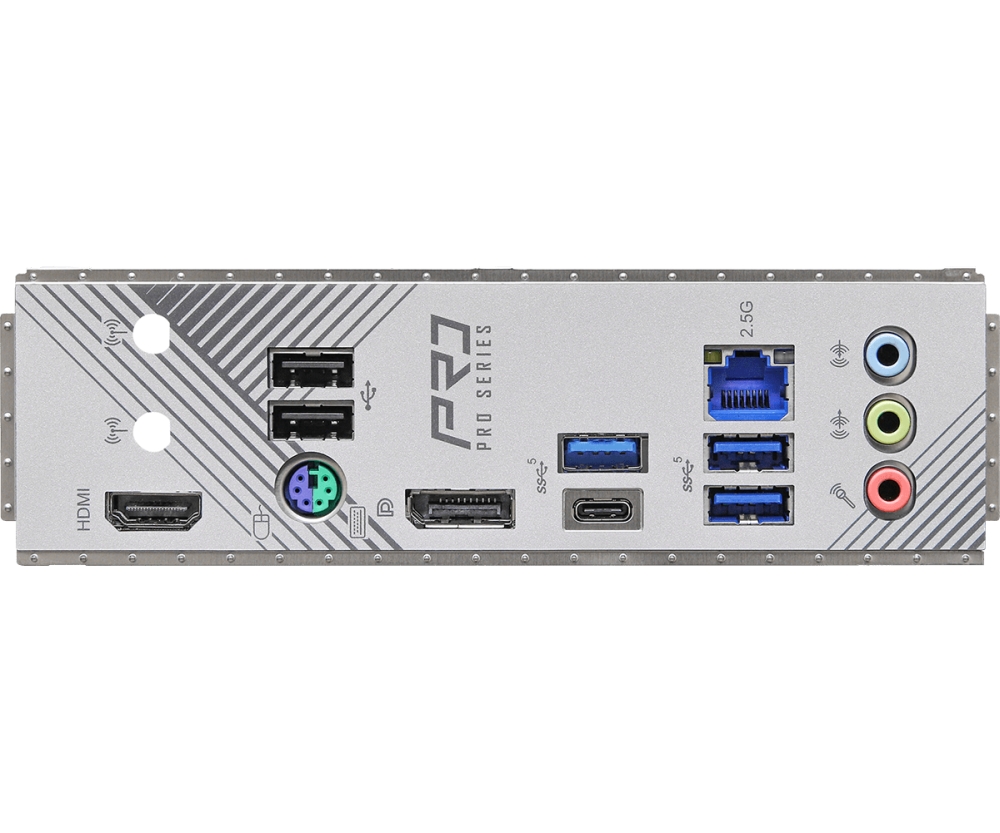

2 x Antenna Mounting Points, PS/2 Mouse/Keyboard Port, HDMI Port, DisplayPort 1.4, USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Софтуер
ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Форм-фактор
mATX
M.2 слот
M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Памет
DDR5
Брой слотове
4 DIMM Slots, Max. capacity of system memory: 192GB
